Hazardous Area (EX) Communications Products
SOLEXY is known globally as an innovator of hazardous area and telemetry solutions for integration and operation of communications technologies within hazardous areas.
SOLEXY’ssolutions are used worldwide in explosive environments within refineries, oil and gas platforms, petrochemical plants, underground coal mines and the process industry. SOLEXY's communications range for hazardous areas provides a variety of barriers and antenna systems, as well as hazardous area purge and explosion proof integrated package solutions for Wi-Fi, Ethernet, Modbus and other busses.
EXPLOSION PROOF SOLUTION
Solexy’s patented Explosion Proof antenna coupler permit the installation of most passive antenna in hazardous area. An integrated blocking circuit and algorithm prevent the hazardous energy reach the antenna and create explosion.

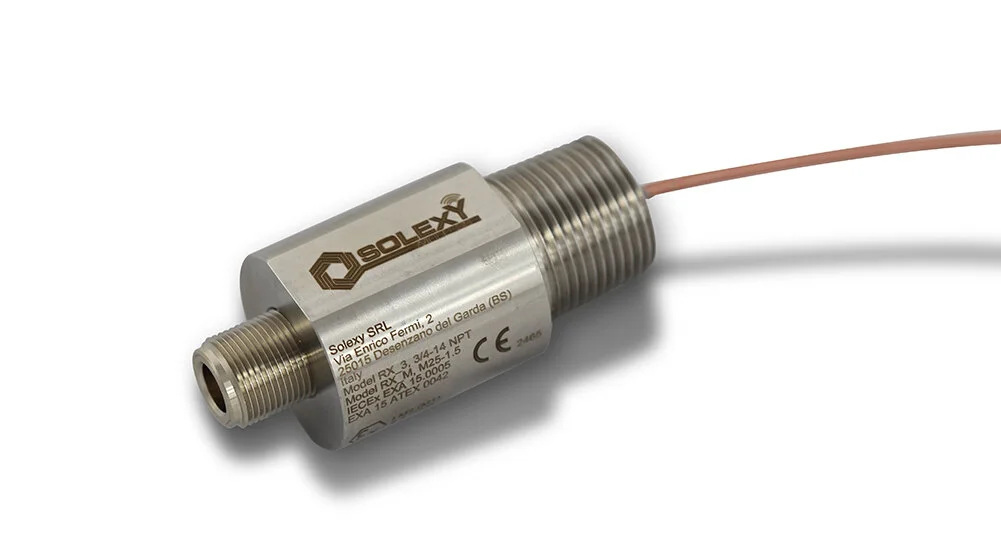

EX antenna coupler/ barrier
AX series explosion proof antenna couplers allow transmission of radio signals into hazardous areas by incorporating an intrinsically safe barrier circuit encapsulated in an explosion proof housing and a seal-off fitting into a single package. Available with UL, ATEX, IECEx or MSHA certifications. IECex certification is issued from an Australian notified body, therefore SX can be installed in Queensland mines
It can cover range from 100Mhz to 6Ghz
EX WIFI access point
The Solexy Router/WiFi access point is a cost effective multipurpose solution for a wide range of wireless applications. WIFI access point, router, cellular 4G, UHF/VHF modem
With more and more EX-rated tablet and EX wireless product in oil and gas environment, the demand of EX WiFi access point is increasing
You can use any brand of WiFi modem. Contact us for further details
EXPLOSION proof wifi mimo ap
The Solexy SWA/SWS A1* is the most compact industrial WiFi MIMO 2×2 access point rated for installation in Zone 1 rated hazardous locations and harsh environments.
It is completely configurable through its Ethernet or WiFi port via your internet browser or through a dedicated configuration software and offers routing, filtering and advanced security features including 802.11i (EAP authentication with Radius server/WPA/WPA2 Enterprise), tunnels with fully encrypted data, firewall, VLAN…
The SWA/SWS A1* features several operating functions: WiFi access point, client, repeater & MESH point modes. It is available with three different radio configurations all of them 2.4/5GHz: 802.11/n MIMO 2×2 (A10) or 802.11/ac MIMO 2×2 (A11) or in a unique dual radio configuration 802.11/n MIMO 2×2 (WiFi1) + 802.11/ac (WiFi2) that allows all the different operating modes to be active simultaneously (A12). For instance one radio is used to maintain the connectivity backbone and the other radio is used as local access point.
It can be powered using the same Ethernet cable used for data (POE or PPOE) or independently through dedicated terminals.
With Solexy’s SWA and SWS enclosures and their rugged construction water proof IP66 and IP68 combined with Atex and IECEx certificates, Solexy offers a wireless device solution for installation in classified Ex areas (gas, dust and mining) and harsh environments, including temporary submersion
ETHERNET BARRIERS
Purged panels are another way to protect electrical circuits.
The panel housing the electrical controls is purged with air to maintain a small amount of pressure above atmosphere.
This insures no explosive gasses can enter into the enclosure causing a spark ignition and creating an explosion.
These panels are monitored with pressure sensors and shut down on the event of depressurization.
The Solexy BX Ethernet barriers are used in purged panels where an Ethernet connection is required.
Since Ethernet transmits from each end of the system, protecting one end only is not enough: ethernet is a 2-way communication protocol.
Using Solexy Ethernet barriers at both ends prevents any risk, providing protection at both ends (sources) because the power coming through the Ethernet cable is intrinsically safe and reduces voltage and power to known safe values.
HAZ LOC Radio solution- SERIAL TO BLUETOOTH
The Solexy Bluetooth wireless serial adapter is a cost effective solution for serial data transmission.
The Class 1 Bluetooth radio can reach wireless transmission distance of 100 meters.
Available for RS232 or RS485/422 serial port, making it a flexible solution for M2M applications.
With Solexy’s SWA and SWS enclosures and their rugged construction water proof IP66, IP68, Nema 4 and 4X combined with Atex, IECEx and North America certificates, Solexy offers a wireless device solution for installation in classified Ex areas (gas, dust and mining) and harsh environments, including temporary submersion
