Long range LTE/5G radio terminal

(Emergency) Communication Services Enhancement by advanced Long-Range LTE (5G) antenna, fabricated in support of maritime, offshore, land mobile and fixed mobile applications

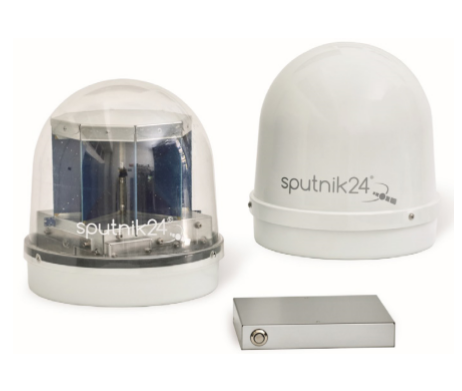

DCT antenna.PNG

Long range LTE terminal- Extends the range of mobile internet connectivity to new dimension with Patented design for extra long range!

  • Up to 40 nautical miles (72km) reach

  • High gain & ultra wide broadband (5G ready)

  • High Quality, designed & made in Germany

  • Easy internet access, use your local (own) SIM card or full package

  • Designed for maritime and desert proof application

  • Save cost, single cable (coaxial/ PoE)

  • Light weight Diversity-and MIMO-Antenna

  • Low power consumption

  • Top Speed up to 150 Mbps down & 50 Mbps up (depending on operator)

  • Available in 2 versions:

    1. standard coaxial cable to BDU (Below Deck Unit)

    2. Ethernet CAT 7 Cable with PoE (Power over Ethernet)

Single Line Diagram

Single Line Diagram



Application

  • Normally 4G Data services can only be received 5 NM (8km) from the shore. With the Antenna this can be extended up to 40NM (70km)

  • Most ship routes are in international waters (outside 12NM), however as close as possible to the shore

  • The antenna and the integrated LTE Modem (incl SIM card) are receiving the signal and convert it into IP-Data.

  • With standard WLAN hotspots, the IP signal is transmitted within the ship/train/truck/…

  • Any WLAN device (PAD/mobile/ etc.) can use this and benefit from relatively inexpensive services

  • The alternative satellite services are significantly more expensive !


DCT application.PNG
